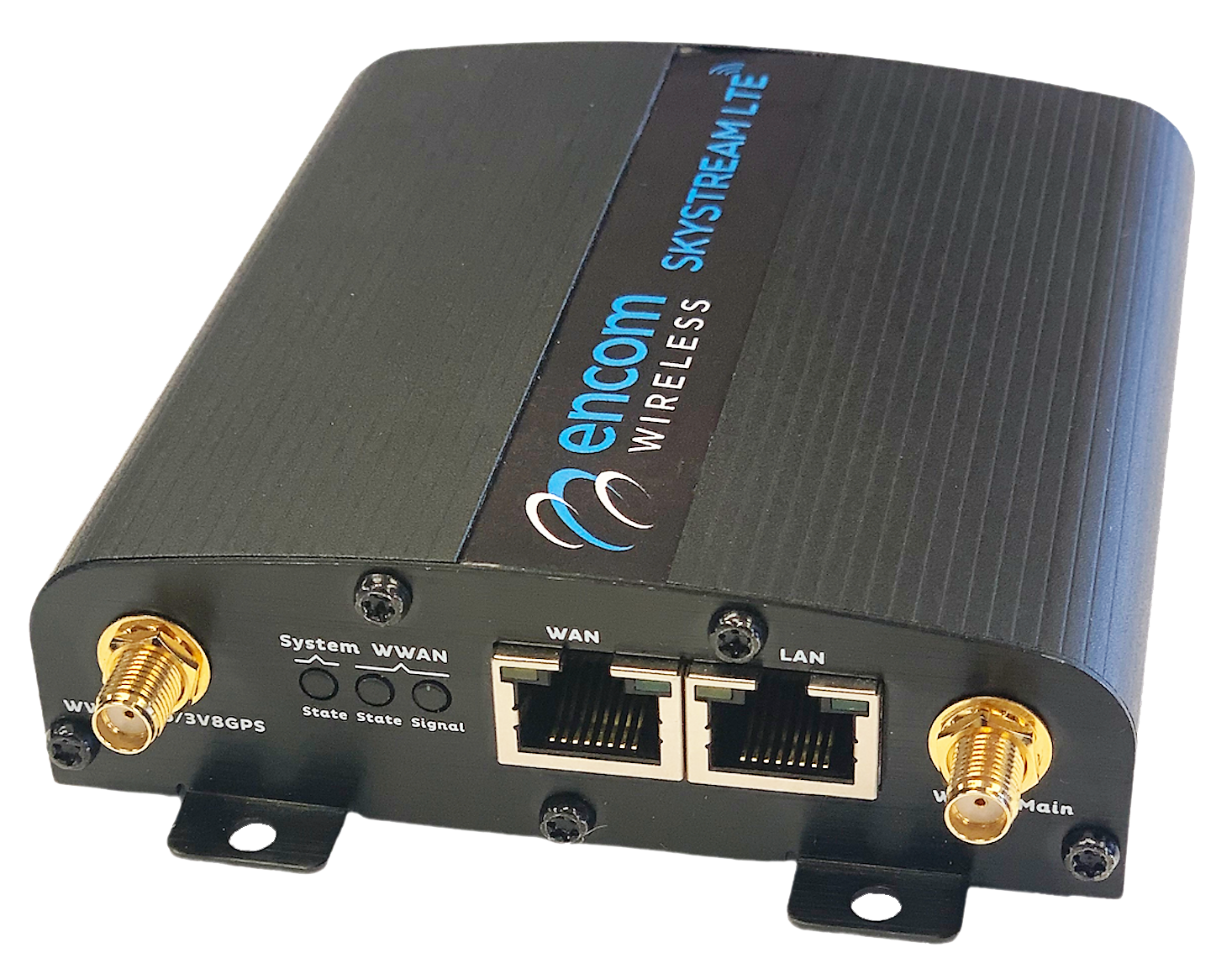

SKYSTYREAM LTE
The SKYSTREAM LTE offering is a standalone Industrial cellular solution, meant as a gateway device for any and all of your applications. It is a worldwide carrier approved M2M / IoT solution platform that keeps security, flexibility and power at the forefront of its features. The SKYSTREAM LTE Device will handle anything you can throw at it! Contact sales now to learn more.
Cost Effective Worldwide 4G/LTE Speeds for all your M2M/IoT Applications. The SKYSTREAM LTE offers a low-profile rugged aluminum design for your critical infrastructure data communication applications. You can deploy the SKYSTREAM LTE into applications such as backhauling data, video streaming, failover from broadband radios and cut fiber, digital/variable message signs, vehicle tracking and more! Add ENCOM Lightening Cards for easy to integrate add-on features.
- Power-Over-Ethernet capability (PoE)
- GPS Connectivity
- Modular Add On Cards
- Built in clips for DIN Rail Mounting
- WAN/LAN Ports
- IP Pass Through mode
- Firewall Security
- Fallback to 3G Network
Industries
- Traffic
- Digital Signs
- Vehicle Tracking
- Green Energy
- Electrical Utilities
- Wastewater Utilities
- Remote Work
- Cottage Country
- Secure Remote Access
Industrial SCADA
Specifications
GENERAL SPECIFICATIONS
| Dimensions: | 4.52 x 4.17 x 1.77 in (102 x 97 x 26 mm) |
| Weight: | 10.05 oz. (220 g) |
| Enclosure: | Aluminum, Black Anodize |
| Antenna Connector: | SMA Male x2 |
| Operating Temperature: | -30 °C to +70°C /-22°F to 158°F, Up to 95% humidity |
| Power input: |
DC input voltage: 9-33 V DC Connector: Micro -Fit 3.0TM, Dual row, 4-position |
| Indications: | System status LED and Signal Strength Indications |
CELLULAR SPECIFICATIONS
| LTE | 3G/2G | |
| Supported Frequency Bands: |
LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28 TDD: 38/39/40/41 |
UMTS/HSDPA/HSUPA/HSPA+: 800-850/900/AWS (1700/2100)/1800/1900/2100 MHz (B1, B2, B4, B5, B6, B8, B19) |
| Max Connectivity Speeds: | Category 4 (150 Mbsp Downlink, 50 Mbps Uplink) | DC-HSPA+ Downlink 42 Mbps, Uplink 5, Mbps |
| Rx Diversity | Simultaneous Equalization and Rx Diversity on all bands | |
| Antenna Configuration: |
1 x SMA: Cellular Main 1 x SMA: Cellular MIMO/DIV/GPS |
|
| SIM: | Micro SIM | |
| GPS: | GPS antenna support | |
| Certifications: | CE, FCC, PTCRB, ISEO | |
| Approved Carriers | AT&T, VZW, US Cellular, Bell, Rogers, TELUS | |
CONNECTIVITY
| Ethernet port (10/100 Base-1) | 2 (One for LAN and one for WAN connection) |
| Configuration, Monitoring & Control | WEB UI |
| Non-Integrated Unit | Integrated Antenna Unit | |
|---|---|---|
| Dimensions | 8.6” x 8.6” x 3.17” | 10.15” x 10.15” x 4.5” |
| Weight | 3 lb. | 5 lb. |
| Environmental | IP67 Weather Protection Rating | IP67 Weather Protection Rating |
| Antenna Type: | 2x N-Type connectors for external antenna | 20 dBi Dual Polarity Panel Antenna |
| Operating Temperature: | -40°F to +176°F @ 95% humidity RHNC | -40°F to +176°F @ 95% humidity RHNC |
| Number of Radio Units: | Up to 2 | Up to 2 |
| Frequency Range: | 4.920- 6.100 GHz (*Subject to Country Regulation) |
| Peak Transmit Power: | 30 dBm (1W) |
| Receive Sensitivity: | -96 dBm to -72 dBm |
| Channel Widths: | 5 MHz, 10 MHz, 20 MHz, 40 MHz and 80 MHz |
| Modulations: | OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| Protocol: | IEEE 802.11a/n/ac, E-max (proprietary) |
| Data Rate: | Up to 866 Mbps in 802.11ac mode Up to 300 Mbps in 802.11n mode Up to 54 Mbps in 802.11a mode |
| MIMO: | 2×2 |
| Topology: | Point-to-Point, Point-to-Multipoint |
| Power | 50-57 VDC Ethernet Port (802.3af/at Power Over Ethernet) |
| Consumption | ENERGY 5 INT: 17W + PoE Output ENERGY 5 EXT: 17W + PoE Output ENERGY 5 DUAL: 19W + PoE Output |
| Reset to Default | Built-in button |
| Alignment | Built-in LED Alignment: 4 Level LED Strip (-60 to -100 dBm) |
| GPS | Built-in GPS for location tracking |
| PoE Out | Port #2: PoE Out (802.3 af, MAX 13W) & Data |
| Topology: | Point-to-Point, Point-to-Multipoint |
ATMOS
Visualize, Monitor, and Control All Your Network Devices from the Cloud!
ATMOS is the evolution of our advanced network visualization management and control system. All the features of Stratos are now available using our secure web-based platform.
Key Benefits:
- Real time visibility of valuable data about each site’s “health” – eliminates guesswork and improves response times
- Data logging for analysis – dramatically improves preventative maintenance planning
- Immediate alerts for downed site(s) – respond to site issues as required instead of waiting for scheduled maintenance or being notified by public service requests.
- Real time monitoring – reduce cost & improve staff and resource planning! Your entire system is visible from one location
Contact us for more information on ATMOS!
